External 3G Communication Module for Smart Meter Celluar Data Collection System

Company Profile
Willfar Information Technology Co., Ltd.
- Established in 2004;
- Listed on the STAR Market of the Shanghai Stock Exchange in December 2019;
- Leading supplier of meter reading (AMI) equipment and operation service;
- The first company to develop "One DCU Reading Multi-meter" solution in China;
- The first company to have large-scale application of technologies and systems like "CPU smart-card Charge and Control", "One DCU Reading Multi-meter", LoRa-based RF Communication and "District Metering Area (DMA)”

Introduction

- The external 3G Cellular module is GSM-based wireless packet switched technology used to provide end-to-end wide area wireless IP connections, which can transfers data to users in “Packet” mode at a high-speed. The Cellular module has prominent advantages in many aspects such as the transfer rate, wireless resource management and billing.


Technical Parameters

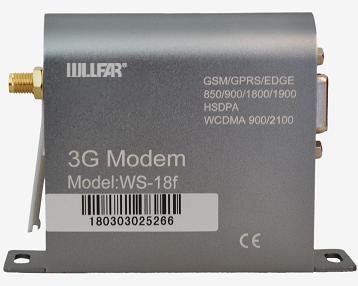

3G Module

RS232 Interface
Various interfaces in 3G Module to connect Meter and Antenna


RS-232(male) port pin assignment

Certificate

CE

Features

1. GSM/GPRS (850/900/1800/1900 MHz)/WCDMA(2100MHz)
2. Over the Air Update

3. Supports TCP/UDP/FTP/DNS protocol

4. Remote SMS configuration

5. Control Via AT Commands

6. Supports USB2.0 slave mode

7. Update Via USB Port

8. Data transfer
• HSPA+

- Max. 14.4Mbps(DL), Max.5.76Mbps(UL)

• WCDMA

- Max.384Kbps(DL), Max.384Kbps(UL)

• EDGE Class:

- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

• GPRS

- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

Reading Instruction

1. Date cable socket to connect meter

2. Power supply socket

3. Antenna pedestal with SMA type

4. Network LED with red always blink

5. SIM card pedestal for installing SIM card

Function

An External 3G Module is composed of several elements, including:

1. CPU is a dual frequency for GSM/GPRS and UMTS chip
2. Watch Dog chip to control power supply
3. Antenna pedestal with SMA type
4. SIM card pedestal for installing SIM card
5. LED display to indicate network status
6. DC/DC power supply to adjust voltage for GPRS CPU

Situation

For smart meter required communication function. Pluggable.

Dimension

Introduction

As the first company in Hunan Province to be listed on SSE STAR Market, Willfar is the pioneer manufacturer in China that can simultaneously provide related industries with all kinds of advanced electricity, water, gas and heat metering products and meters for power distribution, power quality monitoring equipment, a full range of energy data concentrators, relay protection equipment, switchgear products and equipment related to metering automation system and all kinds of application systems as well as services which cover the demand of the whole process of energy production, distribution, transmission and consumption.

Willfar Information Technology Co., Ltd always focuses on customers and takes full control of products’ delivery and deployment, including the process of designing, testing and experimenting as well as the manufacturing process of raw material. We attach great importance to production control plan, potential failure mode and product reliability design which require us to implement the production approval procedure and control the production process strictly so as to ensure the products’ quality.
